AGRICULTURE, CONSTRUCTION, LANDSCAPING, TRACTOR GRAPPLES

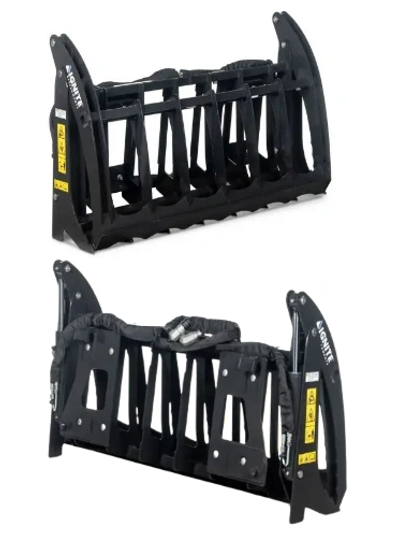

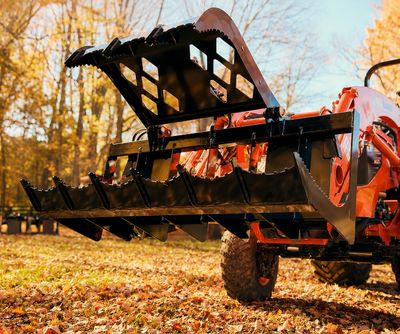

A grapple is the best choice for cleaning up brush and debris with your tractor's loader. Ideal for moving tough material such as logs, brush, and debris. Durable steel construction and a powerful clamping force means it's built to last and makes short work of heavy duty jobs. Designed & made in the USA.

Two Compatible Models - Works on either John Deere Quick Attach (100-400 series) or Universal Skid Steer Quick Attach (Kubota, Massey Ferguson, New Holland, etc.)

Quick Couplers - Flat faced, connect under pressure, 90 degree faster couplers included. If your tractor is equipped with ag style couplers, the grapple couplers will have to be changed to match the tractor. If the grapple's included 1/2" flat face couplers need to be changed, the specific grapple hose end thread type/size is -06 JIC (female).

Serrated Teeth - Curved skeletal teeth holds loads securely and with ease

Stand - Heel allows grapple to stand independently, enabling easy hookup

Includes a 12-month warranty

Weight - 227 lb (48"), 366 lb (60")

Tractor HP - 20-35hp (48"), 30-60hp (60")

Min Loader Lift Capacity - 500 lbs (48"), 700 lb (60")

Overall Depth (Closed) - 19.1 in (48"), 16.3 in (60")

Overall Height (Closed) - 28.3 in (48"), 31.4 in (60")

Overall Height (Open) - 35.7 in (48"),  42.9 in (60")

Opening Size - 35.9 in (48"), 43 in (60")

Max Operating Pressure - 3,000 psi

Grapple Style - Single

Cylinder(s) - 1 (48"), 2 (60") - [2" BORE X 1.25" ROD]

Hoses - Reversible Left/Right Hydraulic Hose Routing Included

Quick Couplers - 1/2" Flush Face Connect Under Pressure Hydraulic Quick Couplers
