AGRICULTURE, CONSTRUCTION, LANDSCAPING, root grapples

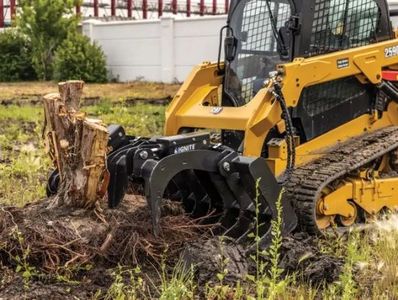

This root grapple is made for heavy-duty work, whether it’s lifting and moving roots, rock, brush, logs or other debris. Designed and built in the USA with American-made components, the root grapple is a must-have attachment for equipment owners in construction, demolition land clearing or brush removal applications—or anyone who wants to move heavy materials and hard-to-handle objects.

• Transporting uneven loads safely and securely.
• Gathering debris while leaving behind unwanted dirt.
• Ripping out roots with durable teeth.
• Clearing land of stumps, logs and trees.

Optimal Grapple Weight - This well-built attachment is designed with optimal weight in mind, giving you strength for the job while ensuring you can use more of your loader’s rated operating capacity to lift and transport more.

Independent Dual Grapple Tines - The independent tines grasp uneven loads, safely and securely.

Heavy-Duty Cylinders - Get extra clamping force and durability for difficult working conditions.

Cylinder Shields - Heavy-duty cylinder shielding provides superior protection on the job.

Flat-Faced Couplers - High-quality and dependable, the flat-faced hydraulic couplers connect quickly, even with pressure in the lines.

Nylon-Sleeved Hoses - Tough nylon sleeves provide extra protection to withstand the elements.

Large 1 ¼-Inch Pins - Large, durable, 1 ¼-inch pins are hardened and greaseable to ensure increased service life.

Laser-Cut Steel - Laser-accurate precision gives you a tighter fit for optimal performance.

Robot-Welded Strength - State-of-the-art manufacturing ensures consistent strength is built into every product.

How It Works - Heavy-duty hydraulic cylinders open the root grapple. The operator will lower the lift arms as far as necessary, then tip the grapple forward until the  lower tines engage the ground. As the grapple approaches the materials, it will begin to tear out roots and fill the grapple with logs, sticks and brush. The operator will close the grapple and raise the lift arms, allowing dirt and soil to fall through the evenly spaced tines while the grapple tines hold the load.

Four Widths - Available in 62-inch, 68-inch, 74-inch, & 82-inch models.

Includes a 12-month warranty

Weight - 800 lbs (62"), 840 lbs (68"), 875 lbs (74"), 920 lbs (82")

Overall Height Grapple Closed - 31.1 in.

Overall Length Grapple Closed - 35.4 in.

Cylinders - 2 (2.5" Bore x 1.25" Rod)

Grapple Opening - 31.5 in.

Quick Couplers - Faster Flat Face (CUP)

Tine Spacing - 6.4 in.

Grapple Tine Width - 19.3 in.

Material - Grade 50

Tine Thickness - 0.4 in.

Outside Tine Thickness - 0.5 in.

Top Grapple Style - Dual Independent
