AGRICULTURE, CONSTRUCTION, LANDSCAPING, BLADES, 3PT BLADES

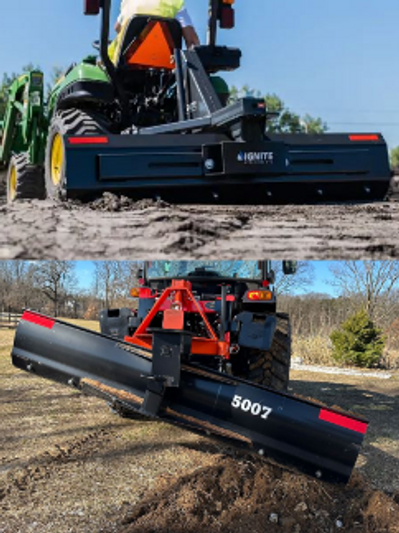

3-PT REAR GRADER BLADE - TRACTOR IMPLEMENT

The perfect fit for your compact tractor, this rear blade is an economical choice for leveling, backfilling, grading, and removing snow on farms or acres. Designed & made in the USA.

  • The 3-point angle blade pushes or scrapes snow from roads or the middle of parking areas
  • Finish-grades gravel roads and driveways, levels land, or backfills areas around buildings or feedlots


Forward and Reverse - The blade rotates a full 360 degrees to be pulled or pushed.


Angles - Five forward and five reverse settings allow you to adjust the angle of the blade.


Offsets - Slide the blade left or right (up to 12 inches).


Tilts - Raise or lower either end until the desired tilt is reached (up to 7.5 degrees from center).


Category 1, 3-Point Hitch - A 3-point hitch is used to connect your rear-mounted blade attachment. An adjustable top link is centered above two lower link arms, comprising the three points. The angle blade attaches easily with connecting pins at each point.


Includes a 12-month warranty

SPECIFICATIONS

Tractor Horsepower - 18-60 (60"), 18-60 (72"), 26-60 (84")

Operating Weight - 308 lbs (60"), 332 lbs (72"), 348 lbs (84")

Length - 40 in (60"), 40 in (72" & 84")

Moldboard Width - 60 in (60"), 72 in (72"), 84 in (84")

Moldboard Height - 15 in

Moldboard Thickness - 0.25 in

Cutting Edge - 6 in

Hitch - Category 1

Adjustment Types - Manual (360 Degree Rotation)

Forward Pivot - 5 Positions (7 degrees each)

Reverse Pivot - 5 Positions (7 degrees each)

Offset Slide (Max) - 12 in. left or right

Tilt (Max) - 7.5 degrees from center
