AGRICULTURE, CONSTRUCTION, LANDSCAPING, LANDSCAPE RAKes

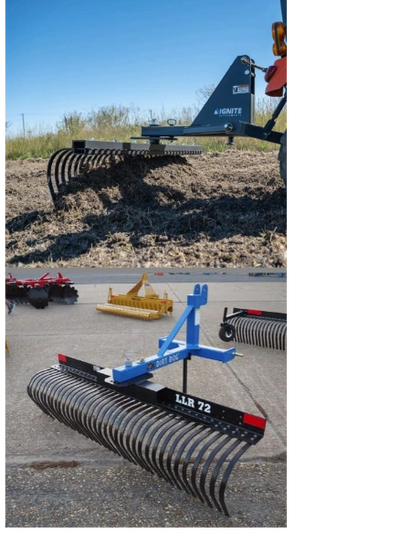

3-PT LANDSCAPE RAKE - TRACTOR IMPLEMENT

This highly versatile landscape rake collects debris/limbs/rocks and smooths lawns in preparation for reseeding and fertilizing as well as quickly rids of surface debris for maintaining gravel parking lots, driveways, or walking trails. Designed & made in the USA.


Two Models Available:

  • Ignite rakes are available in 5ft, 6ft, & 7ft and a wheel kit can be added to any size. Includes 5 forward and 5 reverse angle positions. Comes with a 12 month warranty.
  • Dirt Dog rakes are available in 4ft, 5ft, 6ft, 7ft, & 8ft. Wheel kits can be added to any size above 6ft. Includes 5 forward and 3 reverse angle positions. Colors available include gray, green, orange, red, blue, or yellow. Includes a 2 year warranty.



Rotates and Reverses - The 3-point rake rotates a full 360 degrees, with forward and reverse settings to pull debris off to the side, straighten it to pull debris into a pile, or reverse it to push debris piles out of the way


Replaceable Tines - High-carbon curved tines withstand wear and tear and can be replaced to increase the life of the attachment.


Corrosion-Resistant, Powder-Coat Finish - The landscape rake implement is protected by a durable, powder-coat finish for longer life in the elements.


Ignite includes a 12-month warranty.

Dirt Dog includes a 2 year warranty.

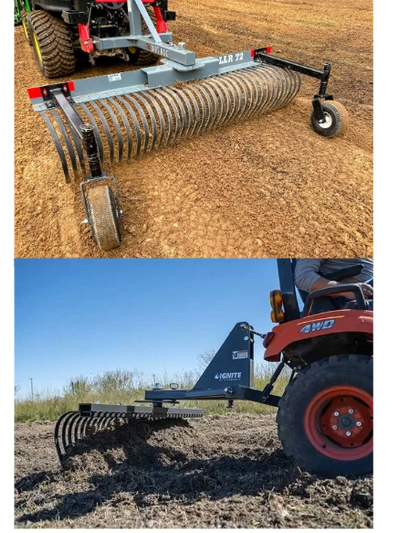

*Add a Wheel Kit - The wheels gauge the depth or height of the landscape rake tines.

Wheel Kit

SPECIFICATIONS

Ignite

Weight - 248 lbs (60"), 272 lbs (72"), 287 lbs (84")

Length - 40 in

Width (Straight) - 60", 72", 84"

Width (Fully Angled) - 57.77" (60"), 68.3" (72"), 78.83" (84")

Tines (Qty) - 30 (60"), 36 (72"), 42 (84")

Tines (Width) - 1 in

Tines (Spacing) - 1 in

Hitch - Category 1

Adjustment Types - Manual (360 Degree rotation)

Pivot - 5 Forward & 5 Reverse Angle Positions

Tractor HP (max) - 60


Dirt Dog

Weight (lbs) - 126 (48"), 143 (60"), 208 (72"), 226 (84"), 312 (96")

Tines (Qty) - 24 (48"), 30 (60"), 36 (72"), 42 (84"), 48 (96")

Tines (Width) - 1 in

Tines (Spacing) - 1 in

Hitch - Category 1

Adjustment Types - Manual (360 Degree rotation)

Pivot - 5 Forward & 3 Reverse Angle Positions

Tractor HP (max) - 25 (48" & 60"), 40 (72" & 84"), 60 (96")
