AGRICULTURE, CONSTRUCTION, LANDSCAPING, 3PT LAND PLANES

Land planes are the perfect tool for maintaining gravel drives and parking lots.  As you move down the road, it shaves the high areas and fills in the low areas leaving a smooth, level road.  The real benefit of it is the simplicity.  Once it is attached to your tractor, just lower the land plane and go, it does all the work!  You'll soon have have beautiful, smooth, level roads.   Designed & made in the USA.

• Grade driveways
• Level land
• Fill in potholes
• Smooth ditches

Two Models Available:

• Ignite land planes come with two cutting edges. Available in 5ft & 6ft.
• Dirt Dog land planes come with two cutting edges & ripper shanks. Available in 5ft, 6ft, & 7ft. Colors available include gray, green, orange, red, blue, or yellow.

Two Cutting Edges - Double up your grading performance with two high-quality cutting edges. Reversible blades extend the cutting edge’s life.

Adjustable Shanks - Available on our Dirt Dog model for those who need to break up extremely rough sections. Each shank has a replaceable plow point.

High-Quality Steel - Built from high-grade steel, the land plane delivers durability to last for years of regular use.

Corrosion-Resistant, Powder-Coat Finish - The land plane features a durable, corrosion-resistant powder-coat finish that protects the attachment to further extend its life and performance.

Includes a 12-month warranty

Ignite

Tractor Horsepower - 23-50 hp (60"), 35-50 hp (72")

Available Sizes - 60" & 72"

Sharifier Shanks - N/A

Overall Width - 65 in (60"), 76 in (72")

Overall Height - 35 in

Overall Length - 48 in

Operating Weight - 430 lbs (60"), 465 lbs (72")

Skid Plate - Yes (adjustable 0-1.5")

Cutting Edges - 0.375 x 6.0 in

Cutting Edge Angle - 10 deg

Hitch Category - CAT 1

Quick Hitch Compatible - Yes

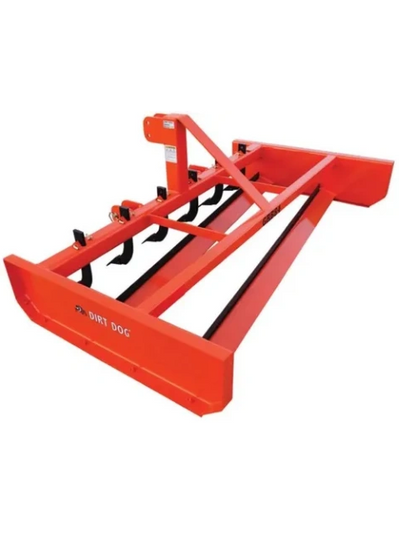

Dirt Dog (Includes Ripper Teeth)

Tractor Horsepower - 50 hp for 2WD or 50 hp for 4WD

Available Sizes - 60", 72", & 84"

Sharifier Shanks - 4 (60"), 6 (72"), 6 (84")

Overall Width - 65 3/16 in (60"), 77 3/16 in (72"), 89 3/16 in (84")

Overall Height - 31.5 in

Overall Length - 49.5 in

Operating Weight - 500 lbs (60"), 571 lbs (72"), 642 lbs (84")

Skid Plate - Yes

Cutting Edges - 0.5 x 6.0 in

Cutting Edge Angle - 6 deg

Hitch Category - CAT 1

Quick Hitch Compatible - Yes
