CONSTRUCTION, LANDSCAPING, ROCK BUCKETS, HEAVY DUTY buckets

The rock bucket collects rocks, debris and large clumps of material, allowing the fine material to slip through its tough tines. Its tough, piercing teeth penetrate packed-in dirt, mulch and other materials. The rock bucket can also be used to tear out vegetation and tangled brush from the surface.  This quality attachment is designed with the optimal weight for your machine with width provides full coverage for your machine.

• Removing rocks and debris from material piles and work sites
• Rock removal in agricultural fields
• Preparing and clearing surfaces for landscape projects
• Clearing storm debris

The heavy duty bucket has more strength and wear protection added to the bottom of the bucket. Get heavy duty grading, leveling, material handling and other tough jobs done with confidence. Bucket design gives you excellent visibility to the cutting edge, making your work that much better.

Designed & made in the USA.

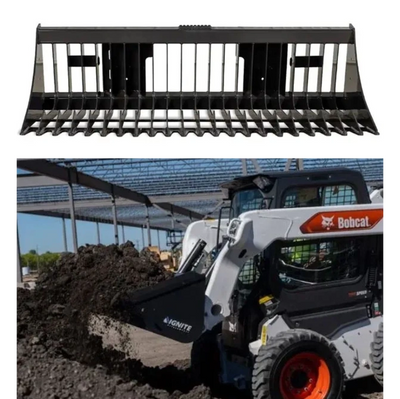

ROCK BUCKET

Laser-Cut Steel - Laser-accurate precision gives you a tighter fit for optimal performance and is made with high quality, grade 50 steel.

Robot-Welded Strength - State-of-the-art manufacturing ensures consistent strength is built into every product.

How It Works - When picking up objects with the rock bucket, approach with the tines digging just below the surface and the rocks or debris you want to collect. Then, raise the bucket. Rocks, debris and other objects remain while fine material sifts through the tines and falls back to the surface.

HEAVY DUTY BUCKET

Options and Accessories - Quick attach cast pads and pre-drilled holes are available as bucket options.

Wear Protection - The skid bar design adds strength and wear protection to the bottom of the bucket.

Great Visibility - It's low back design and longer bottom gives you optimal visibility to the cutting edge.

Bolt-On Cutting Edge - The bolt-on cutting edge increases the life of your loader’s bucket.

Versatility - Quickly convert your bucket into a grapple for handling loose materials.

Includes a 6-month warranty

ROCK BUCKET

Weight - 503 lbs (62"), 543 lbs (68"), 584 lbs (74"), 624 lbs (82")

Length - 38.6 in

Height - 21.8 in

Bottom Tine Spacing (Distance Between) - 3.1 in

Tine Thickness - 0.25 in

HEAVY DUTY BUCKET

Weight - 318 lbs (56"), 336 lbs (62"), 354 lbs (68"), 373 lbs (74")

Length - 31.3 in

Height - 19.8 in

ISO Heaped Capacity - 10.7 Cubic ft (56"), 12 Cubic ft (62"), 13.3 Cubic ft (68"), 14.5 Cubic ft (74")

ISO Struck Capacity - 8.1 Cubic ft (56"), 8.9 Cubic ft (62"), 9.8 Cubic ft (68"), 10.7 Cubic ft (74")

Predrilled For - Bolt-on Edges
