AGRICULTURE, CONSTRUCTION, LANDSCAPING, BUCKET grapples

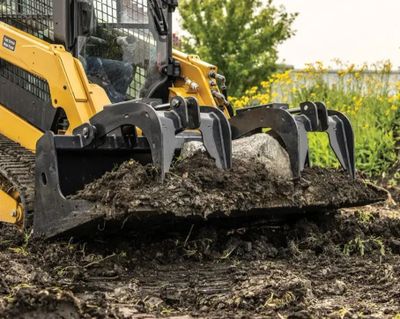

The bucket grapple attachment grabs it and gets the job done. Whether it’s brush, rock, or construction debris, the bucket grapple is an all-purpose material handler that takes it all, clamping down on large objects and irregular chunks of material that are hard to handle with a bucket alone. It’s extremely useful in applications such as construction, landscaping, forestry, agriculture and for personal use—anywhere you deal with both hard-to-hold material in addition to dirt and fine debris that you can’t leave behind. Designed and built in the USA with American-made components, the bucket grapple is a must-have attachment.

• Scooping up dirt and soil.
• Moving piles of logs, tree limbs and brush.
• Clearing land to leave a flat, even surface.
• Clasping clumps of debris.

Optimal Grapple Weight - This well-built attachment is designed with optimal weight in mind, giving you strength for the job while ensuring you can use more of your loader’s rated operating capacity to lift and transport more.

Independent Dual Grapple Tines - The independent tines grasp uneven loads, safely and securely.

Heavy-Duty Cylinders - Get extra clamping force and durability for difficult working conditions.

Cylinder Shields - Heavy-duty cylinder shielding provides superior protection on the job.

Flat-Faced Couplers - High-quality and dependable, the flat-faced hydraulic couplers connect quickly, even with pressure in the lines.

Nylon-Sleeved Hoses - Tough nylon sleeves provide extra protection to withstand the elements.

Large 1 ¼-Inch Pins - Large, durable, 1 ¼-inch pins are hardened and greaseable to ensure increased service life.

Laser-Cut Steel - Laser-accurate precision gives you a tighter fit for optimal performance.

Robot-Welded Strength - State-of-the-art manufacturing ensures consistent strength is built into every product.

How It Works - The operator lowers the lift arms and puts the attachment on the ground. Heavy-duty hydraulic cylinders open the bucket grapple, so the operator can drive forward to collect dirt, gravel, logs and firewood. The grapple clamps on the material, then lifts it up and carries it away, leaving a cleared area

Four Widths - Available in 62-inch, 68-inch, 74-inch, & 82-inch models.

Includes a 12-month warranty

Overall Cutting Edge - 62 in. (62"), 69 in. (68"), 75.5 in. (74"), 82 in. (82")

Weight - 758 lbs (62"), 791 lbs (68"), 821 lbs (74"), 852 lbs (82")

Overall Height Grapple Closed - 29.6 in.

Overall Length Grapple Closed - 40.3 in.

Cylinders - 2 (2.5" Bore x 1.25" Rod)

Grapple Opening - 34.5 in.

Cutting Edge - 0.75 x 6 in.

Quick Couplers - Faster Flat Face (CUP)

Material - Grade 50

Top Grapple Style - Dual Independent

Options - Bolt on Cutting Edge
