AGRICULTURE, CONSTRUCTION, LANDSCAPING, 3PT BOX BLADES

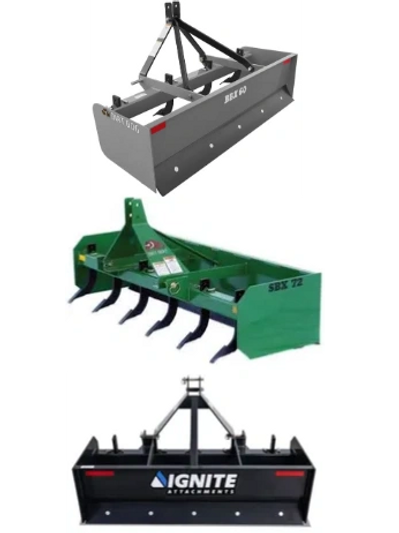

Our box blades offer you perfect compatibility for leveling, backfilling, grading, and moving a variety of material. Both Ignite and Dirt Dog are designed & made in the USA.

• The box blade grades, levels, and backfills on uneven roads, driveways, gardens, or areas around barns and buildings.
• Collects gravel to level ruts and potholes.
• Cleans up and levels mulch piles.
• Clears material out of barns.
• Creates gravel roads or driveways.

Adjustable Ripper Shanks - The ripper shanks adjust up or down to vary the cutting depth for mixing loose soil or tearing through compacted soil or rocks.

Replaceable Ripper Shanks & Cutting Edges - The ripper shanks and blades can be replaced to extend the life of your attachment.

Front and Back Blades - Cutting edges on both the back and front allow you to work forward or reverse so you can get more done in less time.

Reversible Steel Cutting Edges - Simply flip the blade over to get a fresh cut and double the life.

Dirt Dog includes a 2 year warranty.

Ignite includes a 12-month warranty.

Dirt Dog (Standard Duty)

Tractor HP (max) - 25HP (4'), 40HP (5'-6')

Weight - 240 lbs (4'), 325 lbs (5'), 390 lbs (6')

Depth - 23.5 in (4'), 24 in (5'-6')

Height - 29.5 in (4'), 33 in (5'-6')

# of Ripper Shanks - 4 (4'), 4 (5'), 5 (6')

Steel Thickness (end plates) - 3/16" (4'), 1/4" (5'-6')

Hitch - CAT 1

Quick Hitch Compatible - Yes

Dirt Dog (Heavy & Severe Duty)

Tractor HP (max) - 50HP (5'-6'), 65HP (7'-8')

Weight - 490 lbs (5'), 550 lbs (6'), 710 lbs (7'), 790 lbs (8')

Depth - 27.5 in

Height - 35.25 in

# of Ripper Shanks - 5 (5'), 6 (6'-8')

Steel Thickness (end plates) - 3/8" (5'-6')

Hitch - CAT 1 (5'-6'), CAT 1 & 2 (7'-8')

Floating Rear Tail Gate - No (5'-6'), Yes (7'-8')

Quick Hitch Compatible - Yes

Ignite (Heavy Duty)

Tractor HP - 18-30 (48"), 26-65 (60"), 35-65 (72")

Weight - 245 lbs (48"), 395 lbs (60"), 445 lbs (72")

Depth - 28 in (48"), 31 in (60"), 31 in (72")

Width - 49.5 in (48"), 61.5 in (60"), 73.5 in (72")

Height - 32 in (48"), 33 in (60"), 33 in (72")

# of Ripper Shanks - 4 (48"), 5 (60"), 6 (72")

Steel Thickness - 3/8" (side plates), 3/16" or 7 ga (back plate)

Hitch - CAT 1

Quick Hitch Compatible - Yes
